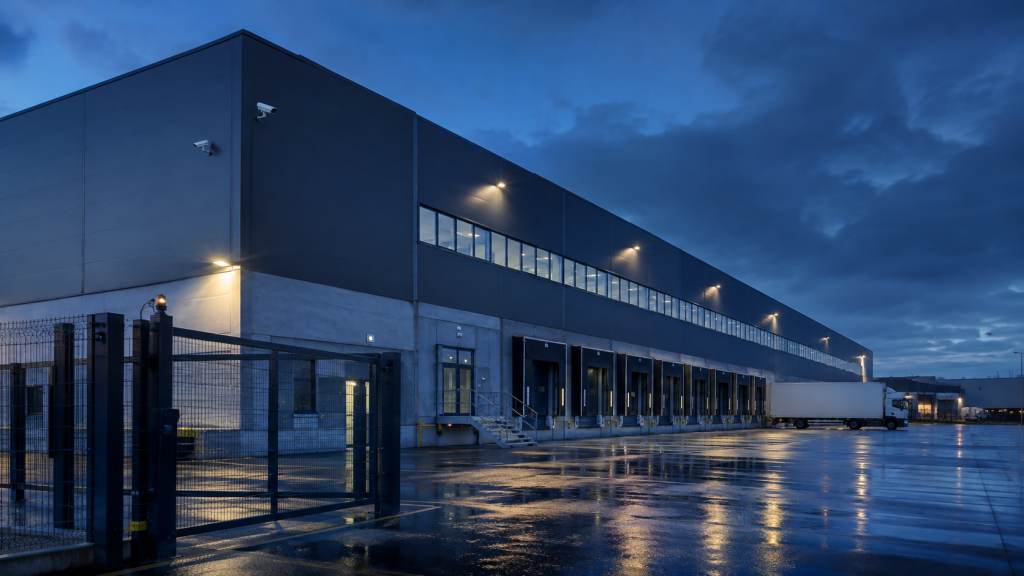

CCTV Upgrades for Large Commercial Sites
Low-voltage infrastructure is often treated as one of the final technical packages in a building project. In practice, many of the decisions that determine its quality must be made much earlier, before ceilings are closed, walls are finished and fixed furniture is installed.
A clear plan at this stage gives every system the space, connectivity and access it requires. It also allows the electrical, architectural and interior fit-out teams to work from the same information. The result is a cleaner installation, a more predictable programme and an infrastructure that can be maintained and expanded without unnecessary disruption.
Why late planning creates avoidable problems
Modern buildings depend on more than power and lighting. Structured data cabling, wireless networks, video surveillance, security alarms, access control and professional displays all require coordinated routes and correctly positioned connection points.
When these requirements are defined after the fit-out has already started, several common problems appear:
- cable routes conflict with ventilation, lighting or other building services;
- network outlets are missing or positioned away from the equipment they serve;
- technical cabinets do not have sufficient space, ventilation or power;
- cameras and sensors have restricted coverage because their locations were chosen too late;
- finished ceilings and walls must be opened again to add cables;
- documentation no longer reflects the installation on site;
- future changes become more difficult and expensive.
These issues rarely come from the equipment itself. They usually begin with incomplete coordination between the building layout and the systems that will operate inside it.
What should be defined before the fit-out
Effective low-voltage planning begins with the intended use of each space. An office floor, retail environment, warehouse and residential property may use similar technologies, but the number of endpoints, coverage requirements and operating conditions can be very different.
The following areas should be reviewed before construction finishes are fixed.
Equipment locations and coverage
The first step is to identify where systems will be used and what each device needs to achieve. This includes camera views, alarm detection zones, wireless coverage, workstations, access-controlled doors, information displays and any equipment that requires a network connection.
Placing these elements on the architectural drawings makes it possible to assess visibility, mounting heights, furniture layouts and potential obstructions before installation begins. It also helps avoid devices being positioned only where a cable happens to be available.
Cable routes and containment
Low-voltage cables need continuous and accessible routes from the technical cabinet to every endpoint. The design should account for trays, conduits, risers, ceiling voids, wall penetrations and suitable separation from other services.
Routes should be coordinated with the electrical and mechanical designs rather than added around them later. Spare capacity is also important. A route that is completely full on the day of handover leaves no practical room for future cameras, workstations or wireless access points.
Technical rooms and network cabinets
The location of the main and secondary cabinets affects cable lengths, network structure and ongoing maintenance. Each cabinet needs adequate space for the rack, patch panels, switches, power distribution, cable management and any system-specific equipment.
Access, ventilation and electrical supply should be considered at the same time. A cabinet hidden inside joinery or placed in an overheated storage area may satisfy the drawing, but it creates an operational problem for the building.
Planning the systems as one coordinated package
Low-voltage systems are often ordered separately, even though they use the same building routes, technical spaces and network infrastructure. Planning them together creates a more coherent result.
For example, the position of a surveillance camera may affect the data outlet schedule, PoE switch capacity, cabinet layout and backup power requirement. A professional display may require data connectivity, concealed power and a specific mounting structure. An access-controlled entrance may combine a reader, lock, door contact, intercom and camera within the same area.
Reviewing these dependencies early helps the project team make decisions once rather than revisiting the same part of the building for each individual system.
